Adjustable foot - Threaded rectangular insert PDV

Adjustable foot - Threaded rectangular insert

bouchon-plastique.com | Frame Adjustable height on feet with plug - rectangular.

PDV

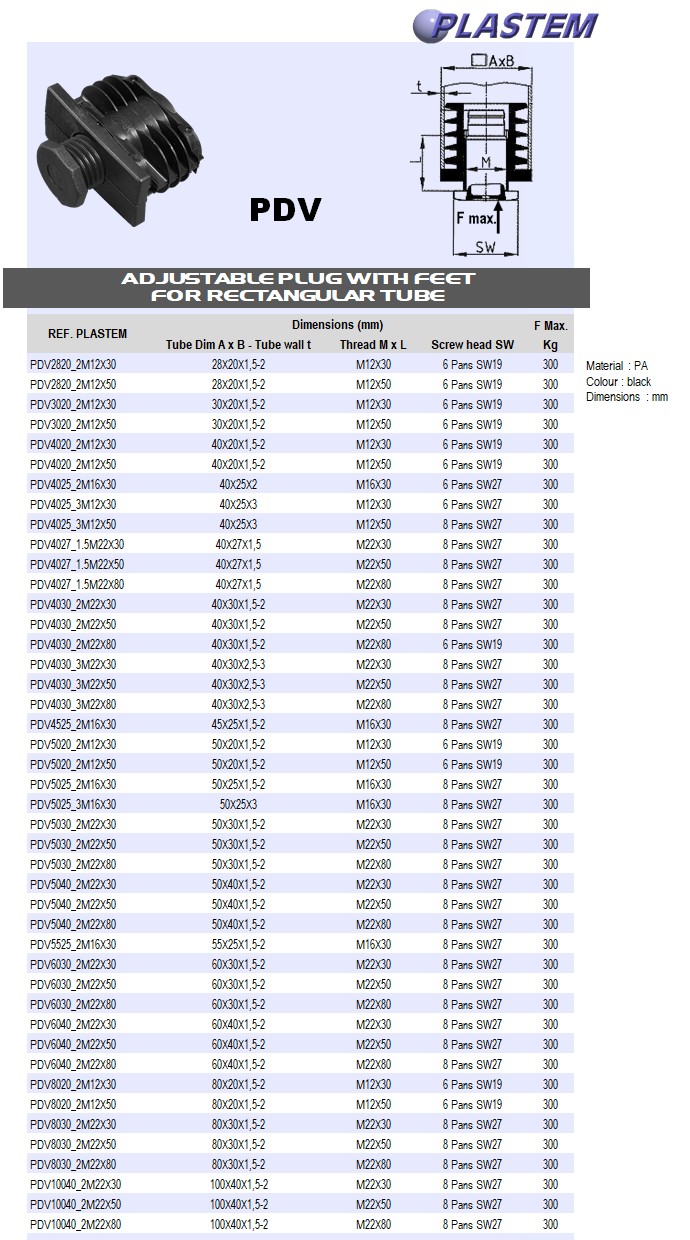

ADJUSTABLE FEET WITH PLUG - RECTANGULAR
Material : PA
Colour : Black
Dimensions : mm
Adjustable height on feet with plug - rectangular.
Dimension based on external dimension and thickness of the tube

Reference Details Sold by Price tax excl Details
PDV10040_2M22X30 Adjustable feet tube OD 100x40 mm Wall 1,5-2 -Thread M22 Ht 30 mm Prix/pce - Price/pce 2.3532 Details
PDV10040_2M22X50 Adjustable feet tube OD 100x40 mm Wall 1,5-2 -Thread M22 Ht 50 mm Prix/pce - Price/pce 2.4875 Details
PDV10040_2M22X80 Adjustable feet tube OD 100x40 mm Wall 1,5-2 -Thread M22 Ht 80 mm Prix/pce - Price/pce 2.7475 Details
PDV2820_2M12X30 Adjustable feet tube OD 28x20 mm Wall 1,5-2 - Thread M12 Ht 30 mm Prix/pce - Price/pce 0.5408 Details
PDV2820_2M12X50 Adjustable feet tube OD 28x20 mm Wall 1,5-2 - Thread M12 Ht 50 mm Prix/pce - Price/pce 0.6112 Details
PDV3020_2M12X30 Adjustable feet tube OD 30x20 mm Wall 1,5-2 - Thread M12 Ht 30 mm Prix/pce - Price/pce 0.5284 Details
PDV3020_2M12X50 Adjustable feet tube OD 30x20 mm Wall 1,5-2 - Thread M12 Ht 50 mm Prix/pce - Price/pce 0.6117 Details
PDV4020_2M12X30 Adjustable feet tube OD 40x20 mm Wall 1,5-2 - Thread M12 Ht 30 mm Prix/pce - Price/pce 0.6263 Details
PDV4020_2M12X50 Adjustable feet tube OD 40x20 mm Wall 1,5-2 - Thread M12 Ht 50 mm Prix/pce - Price/pce 0.6731 Details
PDV4025_2M16X30 Adjustable feet tube OD 40x25 mm Wall 2 - Thread M16 Ht 30 mm Prix/pce - Price/pce 0.8947 Details
PDV4025_3M12X30 Adjustable feet tube OD 40x25 mm Wall 3 - Thread M12 Ht 30 mm Prix/pce - Price/pce 0.9021 Details
PDV4025_3M12X50 Adjustable feet tube OD 40x25 mm Wall 3 - Thread M12 Ht 50 mm Prix/pce - Price/pce 0.9727 Details
PDV4027_1.5M22X30 Adjustable feet tube OD 40x27 mm Wall 1,5 - Thread M22 Ht 30 mm Prix/pce - Price/pce 0.9925 Details
PDV4027_1.5M22X50 Adjustable feet tube OD 40x27 mm Wall 1,5 - Thread M22 Ht 50 mm Prix/pce - Price/pce 1.0100 Details
PDV4027_1.5M22X80 Adjustable feet tube OD 40x27 mm Wall 1,5 - Thread M22 Ht 80 mm Prix/pce - Price/pce 1.4830 Details
PDV4030_2M22X30 Adjustable feet tube OD 40x30 mm Wall 1,5-2 - Thread M22 Ht 30 mm Prix/pce - Price/pce 0.9577 Details
PDV4030_2M22X50 Adjustable feet tube OD 40x30 mm Wall 1,5-2 - Thread M22 Ht 50 mm Prix/pce - Price/pce 1.1804 Details
PDV4030_2M22X80 Adjustable feet tube OD 40x30 mm Wall 1,5-2 - Thread M22 Ht 80 mm Prix/pce - Price/pce 1.4693 Details
PDV4030_3M22X30 Adjustable feet tube OD 40x30 mm Wall 2,5-3 - Thread M22 Ht 30 mm Prix/pce - Price/pce 1.0311 Details
PDV4030_3M22X50 Adjustable feet tube OD 40x30 mm Wall 2,5-3 - Thread M22 Ht 50 mm Prix/pce - Price/pce 1.0942 Details
