Adjustable foot with swivel thread and base for heavy duty

Adjustable foot - Swivel thread for heavy duty


bouchon-plastique.com | Frame PDIF is an adjustable foot with swivel thread for heavy duty

PDIF

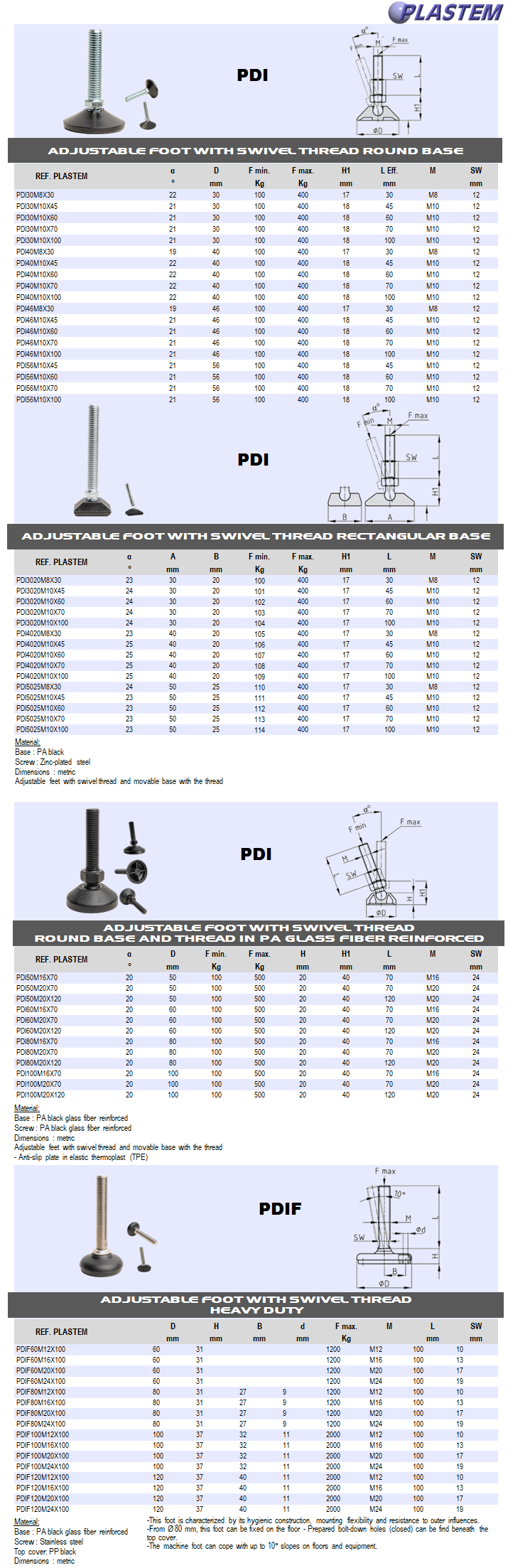

ADJUSTABLE FEET - SWIVEL THREAD WITH BASE - HEAVY DUTY
Material:
Base : PA black glass fiber reinforced
Screw : Stainless steel
Top cover: PP black
Dimensions : metric

-This adjustable foot is characterized by its hygienic construction, mounting flexibility and resistance to outer influences.
-From Ø 80 mm, this foot can be fixed on the floor - Prepared bolt-down holes (closed) can be find beneath the top cover.
-The machine foot can cope with up to 10° slopes on floors and equipment.

Reference Details Sold by Price tax excl Details
PDIF100M12X100 Adjustable feet diam100 Thread M12x100 mm swivel 10° 2000 kg maxi Prix/pce - Price/pce 20.5632 Details
PDIF100M16X100 Adjustable feet diam100 Thread M16x100 mm swivel 10° 2000 kg maxi Prix/pce - Price/pce 22.7332 Details
PDIF100M20X100 Adjustable feet diam100 Thread M20x100 mm swivel 10° 2000 kg maxi Prix/pce - Price/pce 25.6873 Details
PDIF100M24X100 Adjustable feet diam100 Thread M24x100 mm swivel 10° 2000 kg maxi Prix/pce - Price/pce 29.1337 Details
PDIF120M12X100 Adjustable feet diam120 Thread M12x100 mm swivel 10° 2000 kg maxi Prix/pce - Price/pce 23.7179 Details
PDIF120M16X100 Adjustable feet diam120 Thread M16x100 mm swivel 10° 2000 kg maxi Prix/pce - Price/pce 25.8879 Details
PDIF120M20X100 Adjustable feet diam120 Thread M20x100 mm swivel 10° 2000 kg maxi Prix/pce - Price/pce 28.8419 Details
PDIF120M24X100 Adjustable feet diam120 Thread M24x100 mm swivel 10° 2000 kg maxi Prix/pce - Price/pce 32.2883 Details
PDIF60M12X100 Adjustable feet diam60 Thread M12x100 mm swivel 10° 1200 kg maxi Prix/pce - Price/pce 15.4757 Details
PDIF60M16X100 Adjustable feet diam60 Thread M16x100 mm swivel 10° 1200 kg maxi Prix/pce - Price/pce 17.6456 Details
PDIF60M20X100 Adjustable feet diam60 Thread M20x100 mm swivel 10° 1200 kg maxi Prix/pce - Price/pce 20.6544 Details
PDIF60M24X100 Adjustable feet diam60 Thread M24x100 mm swivel 10° 1200 kg maxi Prix/pce - Price/pce 24.0644 Details
PDIF80M12X100 Adjustable feet diam80 Thread M12x100 mm swivel 10° 1200 kg maxi Prix/pce - Price/pce 18.1380 Details
PDIF80M16X100 Adjustable feet diam80 Thread M16x100 mm swivel 10° 1200 kg maxi Prix/pce - Price/pce 20.3444 Details
PDIF80M20X100 Adjustable feet diam80 Thread M20x100 mm swivel 10° 1200 kg maxi Prix/pce - Price/pce 23.2802 Details
PDIF80M24X100 Adjustable feet diam80 Thread M24x100 mm swivel 10° 1200 kg maxi Prix/pce - Price/pce 26.7449 Details
