Protection caps with flange

Protection caps with flange


bouchon-plastique.com | Frame AR is a protection caps with pull-off ear

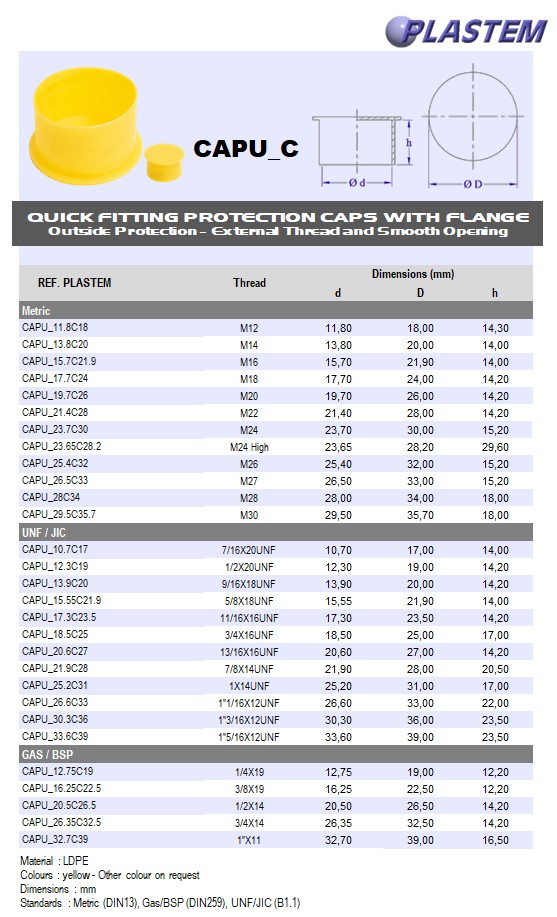

CAPU_C
EXTERNAL THREAD AND SMOOTH OPENING PROTECTION WITH FLANGE
Material: LDPE
Colour : Yellow - Other colour on request
Dimensions : mm
Standard : Metric (DIN13), Gas/BSP (DIN259), UNF/JIC (B1.1)

Ref. CAPU_C is a flanged protection caps for outside cover.
Quick fitting and removal
Easily pushed onto usual threads

Reference Details Sold by Price tax excl Details
CAPU_10.7C17 Covers ID 10,7 - C 17 mm - 7/16 UNF/JIC - Yellow Prix/pce - Price/pce 0.1767 Details
CAPU_11.8C18 Covers ID 11,8 - C 18 mm - M12 - Yellow Prix/pce - Price/pce 0.1767 Details
CAPU_12.3C19 Covers ID 12,3 - C 19 mm - 1/2 UNF/JIC - Yellow Prix/pce - Price/pce 0.1777 Details
CAPU_12.75C19 Covers ID 12,75 - C 19 mm - 1/4 GAS/BSP - Yellow Prix/pce - Price/pce 0.1767 Details
CAPU_13.8C20 Covers ID 13,8 - C 20 mm - M14 - Yellow Prix/pce - Price/pce 0.1776 Details
CAPU_13.9C20 Covers ID 13,9 - C 20 mm - 9/16 UNF/JIC - Yellow Prix/pce - Price/pce 0.1783 Details
CAPU_15.55C21.9 Covers ID 15,55 - C 21,9 mm - 5/8 UNF/JIC - Yellow Prix/pce - Price/pce 0.1792 Details
CAPU_15.7C21.9 Covers ID 15,7 - C 21,9 mm - M16 - Yellow Prix/pce - Price/pce 0.1786 Details
CAPU_16.25C22.5 Covers ID 16,25 - C 22,5 mm - 3/8 GAS/BSP - Yellow Prix/pce - Price/pce 0.1780 Details
CAPU_17.3C23.5 Covers ID 17,3 - C 23,5 mm - 11/16 UNF/JIC - Yellow Prix/pce - Price/pce 0.1803 Details
CAPU_17.7C24 Covers ID 17,7 - C 24 mm - M18 - Yellow Prix/pce - Price/pce 0.1802 Details
CAPU_18.5C25 Covers ID 18,5 - C 25 mm - 3/4 UNF/JIC - Yellow Prix/pce - Price/pce 0.1824 Details
CAPU_19.7C26 Covers ID 19,7 - C 26 mm - M20 - Yellow Prix/pce - Price/pce 0.1814 Details
CAPU_20.5C26.5 Covers ID 20,5 - C 26,5 mm - 1/2 GAS/BSP - Yellow Prix/pce - Price/pce 0.1805 Details
CAPU_20.6C27 Covers ID 20,6 - C 27 mm - 13/16 UNF/JIC - Yellow Prix/pce - Price/pce 0.1825 Details
CAPU_21.4C28 Covers ID 21,4 - C 28 mm - M22 - Yellow Prix/pce - Price/pce 0.1825 Details
CAPU_21.9C28 Covers ID 21,9 - C 28 mm - 7/8 UNF/JIC - Yellow Prix/pce - Price/pce 0.1854 Details
CAPU_23.7C30 Covers ID 23,7 - C 30 mm - M24 - Yellow Prix/pce - Price/pce 0.1842 Details
CAPU_25.2C31 Covers ID 25,2 - C 31 mm - 1 UNF/JIC - Yellow Prix/pce - Price/pce 0.1867 Details
CAPU_25.4C32 Covers ID 25,4 - C 32 mm - M26 - Yellow Prix/pce - Price/pce 0.1857 Details
