Adjustable foot - Movable base PDB

Adjustable foot - Movable base


bouchon-plastique.com | Frame PDB is an adjustable foot with a movable base

PDB

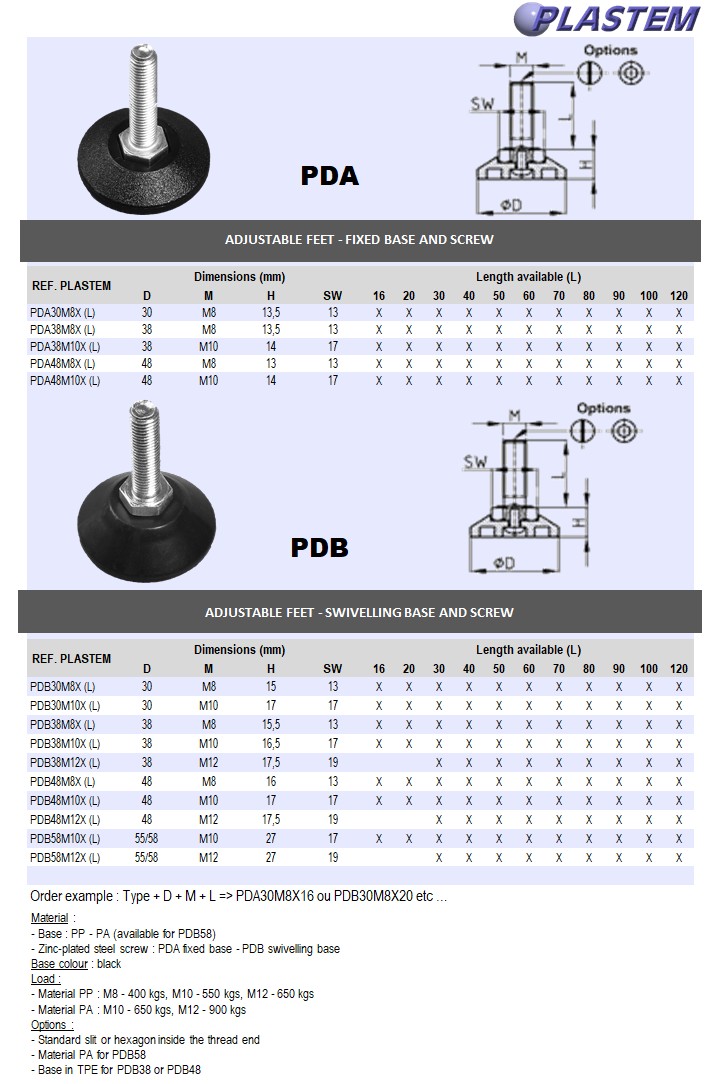

ADJUSTABLE FEET - MOVABLE BASE WITH THREAD
Material: Base : PP black - PA black (available for PDB58)
Screw : Zinc-plated steel
Dimensions : metric
Adjustable feet with movable base with the thread
Ref. PDA fixed base - PDB : movable base
Load :
- Material PP : M8 - 400 kgs, M10 - 550 kgs, M12 - 650 kgs
- Material PA : M10 - 650 kgs, M12 - 900 kgs
Options :
- Standard slit or hexagon inside the thread end
- Material PA for PDB58
- Base in TPE for PDB38 or PDB48
PDB48

Ex Ref. : Type + D + M + L => PDB30M8X16

Reference Details Sold by Price tax excl Details
PDB30M10X100 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 100 mm Prix/pce - Price/pce 0.7560 Details
PDB30M10X120 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 120 mm Prix/pce - Price/pce 1.3826 Details
PDB30M10X16 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 16 mm Prix/pce - Price/pce 0.4353 Details
PDB30M10X20 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 20 mm Prix/pce - Price/pce 0.4364 Details
PDB30M10X30 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 30 mm Prix/pce - Price/pce 0.4426 Details
PDB30M10X40 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 40 mm Prix/pce - Price/pce 0.4622 Details
PDB30M10X50 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 50 mm Prix/pce - Price/pce 0.4769 Details
PDB30M10X60 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 60 mm Prix/pce - Price/pce 0.4993 Details
PDB30M10X70 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 70 mm Prix/pce - Price/pce 0.5669 Details
PDB30M10X80 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 80 mm Prix/pce - Price/pce 0.5794 Details
PDB30M10X90 Adjustable feet - Swivelling base diam. 30 - Thread M10 x 90 mm Prix/pce - Price/pce 0.7067 Details
PDB30M8X100 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 100 mm Prix/pce - Price/pce 0.7010 Details
PDB30M8X120 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 120 mm Prix/pce - Price/pce 1.2944 Details
PDB30M8X16 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 16 mm Prix/pce - Price/pce 0.4048 Details
PDB30M8X20 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 20 mm Prix/pce - Price/pce 0.4065 Details
PDB30M8X30 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 30 mm Prix/pce - Price/pce 0.4151 Details
PDB30M8X40 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 40 mm Prix/pce - Price/pce 0.4261 Details
PDB30M8X50 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 50 mm Prix/pce - Price/pce 0.4404 Details
PDB30M8X60 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 60 mm Prix/pce - Price/pce 0.4587 Details
PDB30M8X70 Adjustable feet - Swivelling base diam. 30 - Thread M8 x 70 mm Prix/pce - Price/pce 0.5138 Details
