Tapered yellow caps - external and internal protection

Tapered yellow caps - external and internal protection


bouchon-plastique.com | Frame CONE_D are intended for use as tapered caps or plugs for inside and outside protection

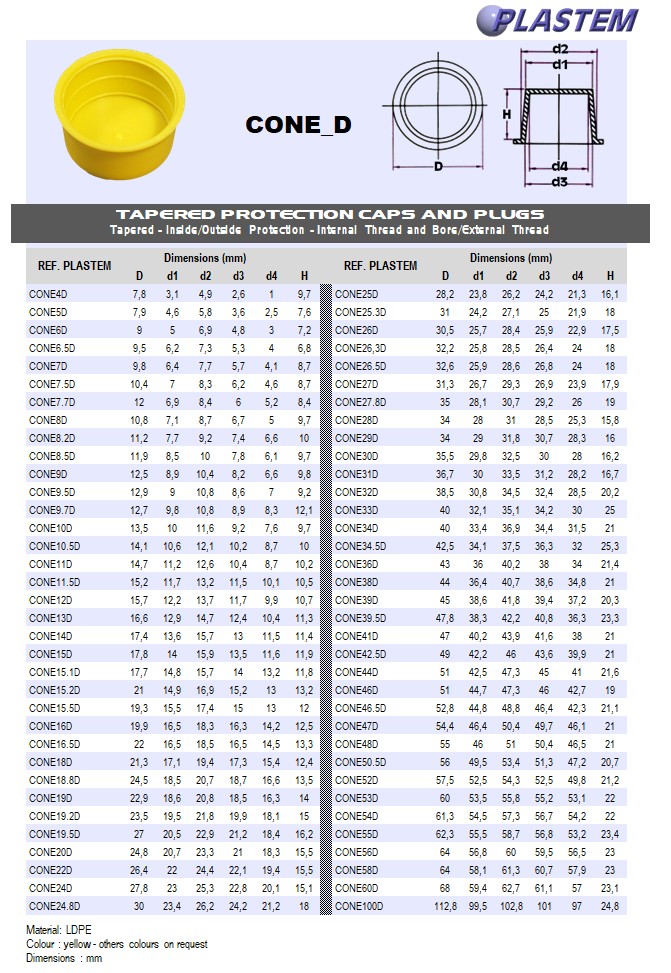

CONE_D
INTERNAL THREAD AND BORE - EXTERNAL THREAD AND SMOOTH OPENING PROTECTION
Material: LDPE
Colour : Yellow
Dimensions : mm

The conical cap is an essential accessory for protecting bores, threads and end caps. Thanks to its conical shape, it adapts perfectly to different opening sizes, guaranteeing a secure, leak-proof seal.

It can be used to:

-Protect bores and threads by plugging them.
-Covering threads and smooth end caps to prevent clogging or impact.
-Serving as a conical plug for tubes, particularly in the fields of metal construction, plumbing and industrial mechanics.

The plastic conical cap, whether used for internal or external protection, plays an essential role in the safety and longevity of metal structures. It covers the ends of cylindrical tubes, protecting threads and smooth ends from external damage such as dust, moisture or mechanical impact.
When used on construction sites, the conical cap limits the risk of damage due to repeated abrasion caused by the handling and transport of iron bars.

The bright yellow colour of the conical cap was not chosen at random: it allows for quick identification on construction sites or production lines, thus facilitating positioning and replacement in the event of failure. This visibility also enhances operator safety, particularly on scaffolding or in high-activity areas.

Reference Details Sold by Price tax excl Details
CONE10.5D Tapered caps OD 10,6 to 12,1 mm D 14,1 mm - Yellow Prix/pce - Price/pce 0.1846 Details
CONE100D Tapered caps OD 99,5 to 102,8 mm D 112,8 mm - Yellow Prix/pce - Price/pce 0.5626 Details
CONE10D Tapered caps OD 10 to 11,6 mm D 13,5 mm - Yellow Prix/pce - Price/pce 0.1844 Details
CONE11.5D Tapered caps OD 11,7 to 13,2 mm D 15,2 mm - Yellow Prix/pce - Price/pce 0.1849 Details
CONE11D Tapered caps OD 11,2 to 12,6 mm D 14,7 mm - Yellow Prix/pce - Price/pce 0.1847 Details
CONE12D Tapered caps OD 12,2 to 13,7 mm D 15,7 mm - Yellow Prix/pce - Price/pce 0.1851 Details
CONE13D Tapered caps OD 12,9 to 14,7 mm D 16,6 mm - Yellow Prix/pce - Price/pce 0.1853 Details
CONE14D Tapered caps OD 13,6 to 15,7 mm D 17,4 mm - Yellow Prix/pce - Price/pce 0.1857 Details
CONE15.1D Tapered caps OD 14,8 to 15,7 mm D 17,7 mm - Yellow Prix/pce - Price/pce 0.1859 Details
CONE15.2D Tapered caps OD 14,9 to 16,9 mm D 21 mm - Yellow Prix/pce - Price/pce 0.1861 Details
CONE15.5D Tapered caps OD 15,5 to 17,4 mm D 19,3 mm - Yellow Prix/pce - Price/pce 0.1862 Details
CONE15D Tapered caps OD 14 to 15,9 mm D 17,8 mm - Yellow Prix/pce - Price/pce 0.1858 Details
CONE16.5D Tapered caps OD 16,5 to 18,5 mm D 22 mm - Yellow Prix/pce - Price/pce 0.1865 Details
CONE16D Tapered caps OD 16,5 to 18,3 mm D 19,9 mm - Yellow Prix/pce - Price/pce 0.1862 Details
CONE18.8D Tapered caps OD 18,5 to 20,7 mm D 24,5 mm - Yellow Prix/pce - Price/pce 0.1881 Details
CONE18D Tapered caps OD 17,1 to 19,4 mm D 21,3 mm - Yellow Prix/pce - Price/pce 0.1877 Details
CONE19.2D Tapered caps OD 19,5 to 21,8 mm D 23,5 mm - Yellow Prix/pce - Price/pce 0.1898 Details
CONE19.5D Tapered caps OD 20,5 to 22,9 mm D 27 mm - Yellow Prix/pce - Price/pce 0.1902 Details
CONE19D Tapered caps OD 18,6 to 20,8 mm D 22,9 mm - Yellow Prix/pce - Price/pce 0.1894 Details
CONE20D Tapered caps OD 20,7 to 23,3 mm D 24,8 mm - Yellow Prix/pce - Price/pce 0.1927 Details
