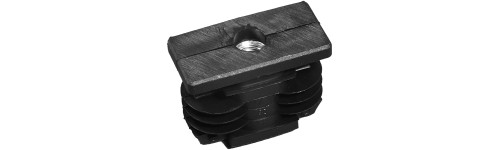

Rectangular tube insert - Metal thread RE_M

Rectangular tube insert - Metal thread

bouchon-plastique.com | Frame RE_M is assembled plastic threaded inserts with metal thread on rectangular tube for adjustable feet.

RE_M

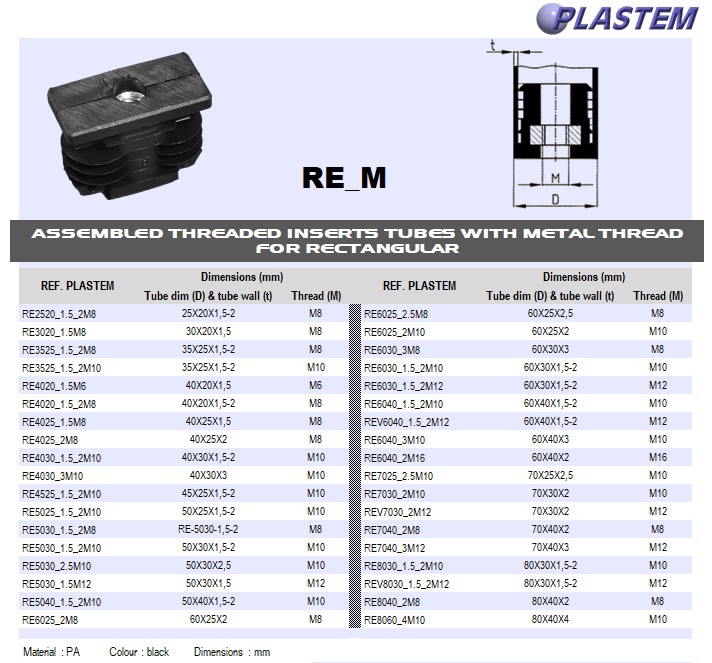

PLASTIC INSERTS WITH METAL THREAD
Material : PA
Colour : Black
Dimensions : mm
RE_M is assembled plastic threaded inserts with metal thread on rectangular tube for adjustable feet.
Dimension based on external dimension and thickness of the tube

Reference Details Sold by Price tax excl Details
RE2520_1.5_2M8 Rect. black inserts tube OD 25x20 mm Wall 1,5-2 - Metal thread M8 Prix/pce - Price/pce 0.4881 Details
RE3020_1.5M8 Rect. black inserts tube OD 30x20 mm Wall 1,5 - Metal thread M8 Prix/pce - Price/pce 0.6117 Details
RE3525_1.5_2M10 Rect. black inserts tube OD 35x25 mm Wall1,5-2 - Metal thread M10 Prix/pce - Price/pce 0.7143 Details
RE3525_1.5_2M8 Rect. black inserts tube OD 35x25 mm Wall 1,5-2 - Metal thread M8 Prix/pce - Price/pce 0.7134 Details
RE4020_1.5M6 Rect. black inserts tube OD 40x20 mm Wall 1,5 - Metal thread M6 Prix/pce - Price/pce 0.6901 Details
RE4020_1.5_2M8 Rect. black inserts tube OD 40x20 mm Wall 1,5-2 - Metal thread M8 Prix/pce - Price/pce 0.6250 Details
RE4025_1.5M8 Rect. black inserts tube OD 40x25 mm Wall 1,5 - Metal thread M8 Prix/pce - Price/pce 0.7869 Details
RE4025_2M8 Rect. black inserts tube OD 40x25 mm Wall 2 - Metal thread M8 Prix/pce - Price/pce 0.7870 Details
RE4030_1.5_2M10 Rect. black inserts tube OD 40x30 mm Wall1,5-2 - Metal thread M10 Prix/pce - Price/pce 1.0929 Details
RE4030_3M10 Rect. black inserts tube OD 40x30 mm Wall 3 - Metal thread M10 Prix/pce - Price/pce 1.0929 Details
RE4525_1.5_2M10 Rect. black inserts tube OD 45x25 mm Wall1,5-2 - Metal thread M10 Prix/pce - Price/pce 0.8000 Details
RE5025_1.5_2M10 Rect. black inserts tube OD 50x25 mm Wall1,5-2 - Metal thread M10 Prix/pce - Price/pce 0.9740 Details
RE5030_1.5M12 Rect. black inserts tube OD 50x30 mm Wall 1,5 - Metal thread M12 Prix/pce - Price/pce 1.1801 Details
RE5030_1.5_2M10 Rect. black inserts tube OD 50x30 mm Wall1,5-2 - Metal thread M10 Prix/pce - Price/pce 1.0825 Details
RE5030_1.5_2M8 Rect. black inserts tube OD 50x30 mm Wall 1,5-2 - Metal thread M8 Prix/pce - Price/pce 0.9966 Details
RE5030_2.5M10 Rect. black inserts tube OD 50x30 mm Wall 2,5 - Metal thread M10 Prix/pce - Price/pce 1.0825 Details
RE5030_3M8 Rect. black inserts tube OD 50x30 mm Wall 3 Metal thread M8 No Flange Prix/pce - Price/pce 0.9772 Details
RE5040_1.5_2M10 Rect. black inserts tube OD 50x40 mm Wall1,5-2 - Metal thread M10 Prix/pce - Price/pce 1.2368 Details
RE6025_2.5M8 Rect. black inserts tube OD 60x25 mm Wall 2,5 - Metal thread M8 Prix/pce - Price/pce 1.1328 Details
RE6025_2M10 Rect. black inserts tube OD 60x25 mm Wall 2 - Metal thread M10 Prix/pce - Price/pce 1.1353 Details
