Banjo Union Cap
BA
BANJO UNION CAP - EXTERNAL PROTECTION
Material: LDPE
Colour : Yellow - Other colour on request
Dimensions : mm
Standard : DIN 7462 B/E
Made from LDPE (low-density polyethylene), our plastic banjo union cap stand out for their strength and practicality. Available in yellow as standard for quick identification, they can be produced in other colours to suit your specific requirements. Their rectangular design is perfectly suited to banjo fittings that comply with the DIN 7642 B/E standard. Thanks to the mechanical properties of the resin used, each cover has optimal rigidity, making it easy to install and remove without effort.
In order to accommodate all configurations, we offer several models of banjo union caps adapted to different outer diameters of hydraulic pipes. Each reference is accompanied by a detailed diagram and technical description that can be downloaded directly from our website. Dimensions vary according to requirements: length from 14 to 41 mm, width from 7.8 to 24.8 mm and height from 17 to 44 mm. This diversity allows you to find the cover that fits your banjo fitting perfectly, ensuring reliable and durable protection.
By choosing our banjo union caps, you benefit from a product that is easy to use, robust and compliant with hydraulic industry requirements. Whether you are a professional or a private individual, these plastic accessories are a practical and economical solution for extending the life of your installations.
There are 7 products.

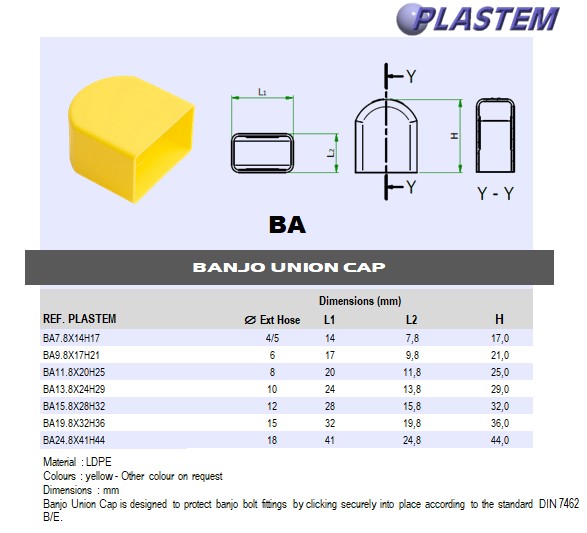

| Reference | Details | Sold by | Price tax excl | Details |
|---|---|---|---|---|
| BA11.8X20H25 | Banjo Union Cap for pipe OD 8 ID 11,8x20 Ht. 25 mm - Yellow | Prix/pce - Price/pce | 0.0700 | Details |
| BA13.8X24H29 | Banjo Union Cap for pipe OD 10 ID 13,8x24 Ht. 29 mm - Yellow | Prix/pce - Price/pce | 0.0717 | Details |
| BA15.8X28H32 | Banjo Union Cap for pipe OD 12 ID 15,8x28 Ht. 32 mm - Yellow | Prix/pce - Price/pce | 0.0740 | Details |
| BA19.8X32H36 | Banjo Union Cap for pipe OD 15 ID 19,8x32 Ht. 36 mm - Yellow | Prix/pce - Price/pce | 0.0867 | Details |
| BA24.8X41H44 | Banjo Union Cap for pipe OD 18 ID 24,8x41 Ht. 44 mm - Yellow | Prix/pce - Price/pce | 0.0970 | Details |
| BA7.8X14H17 | Banjo Union Cap for pipe OD 4/5 ID 7,8x14 Ht. 17 mm - Yellow | Prix/pce - Price/pce | 0.0650 | Details |
| BA9.8X17H21 | Banjo Union Cap for pipe OD 6 ID 9,8x17 Ht. 21 mm - Yellow | Prix/pce - Price/pce | 0.0667 | Details |
There are 7 products.
